PRODUCT
JYF75

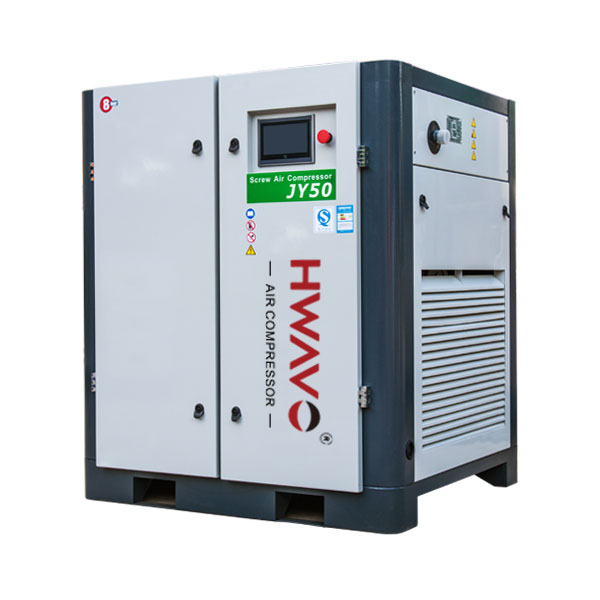

Screw Air Compressor
1.Superior electrical control system and maintenance instructions
2.High efficiency electric motor and transmission system
3.Excellent cooling device with super large heat radiation
4.Reduce air leakage
5.Large capacity, high efficiency
6.Durable large sized bearing
| Model | Working Pressure | Air Delivery | Motor Power | Type of Driving | Type of Cooling | Dimension(mm) | Weight(kg) | Output pipe Diameter | ||||
| psig | bar | cfm | m3/min | kw/hp | L | W | H | |||||
| JYF75 | 100 | 7 | 370.8 | 10.5 | 55/75 | Direct/Belt Driven | Air Cooling | 1950 | 1320 | 1570 | 1750 | 2" |
| 116 | 8 | 346 | 9.8 | |||||||||
| 145 | 10 | 307.2 | 8.7 | |||||||||
| 181 | 12.5 | 257.8 | 7.3 | |||||||||
